raksmart:日本东京云服务器之大陆优化线路测评

VPS评测评论字数 8616阅读模式

本月也就是12月份raksmart日本云服务器正式上架了,该数据中心是继美国硅谷、洛杉矶、中国香港之后的第4处云服务器数据中心。目前日本东京云服务器最低配月付$8.73/月起,线路分为:大陆优化”、“cn2”,本文将测评大陆优化线路的云服务器,感兴趣的小伙伴可以围观。

raksmart:日本东京云服务器之大陆优化线路测评

1、官网

网址https://www.raksmart.com

2、cloud云服务器介绍

1)基于kvm虚拟,日本云服务器最高支持48核,256G内存。默认分配40G系统盘,可添加数据盘,不限制大小,数据盘每G每月0.08美元!

2)带宽支持1Mbps~1000Mbps(自己选择大小,不限流量使用可以霸占,每Mbps是0.4美元/月)

3)操作系统支持centos\debian\ubuntu\fedora\Windows server 2003-2008-2012-2016-2019

4)网络线路有“大陆优化”、“cn2”可选。

5)自带一个IPv4、2个快照(snapshot)、2个备份(backup)、付款周期为月、季、半年、年。最低配,$8.73/月

6)网络分为vpc网络和经典网络,推荐使用vpc网络,支持各种高级网络特性!!

3、云服务器配置

因为配置可选,这里只是简单例举几个,仅供参考。特征,带宽为独享,流量不限。

注意使用7折优惠码:Cloud-TP-30%dis

使用优惠码之后,最低配置低至$6/月!

CPU 内存 SSD 流量 带宽 价格 购买
1核 1G 40G 不限 1M $8.73/月 链接
2核 2G 40G 不限 10M $68.74/月 链接
4核 4G 40G 不限 10M $87.31/月 链接
8核 8G 40G 不限 10M $112.07/月 链接

4、系统信息

CPU E5-2697 v2 @ 2.70GHz,磁盘IO: 425.3 MB/s

raksmart:日本东京云服务器之大陆优化线路测评

5、杂项测试

流媒体测试,还不错,能看Disney+

raksmart:日本东京云服务器之大陆优化线路测评

国内测速,上下行速度跑满。

raksmart:日本东京云服务器之大陆优化线路测评

国外测速,欧美跑的和国内差不多,10M,差不多跑满。

raksmart:日本东京云服务器之大陆优化线路测评

磁盘FIO读写,这个自己看吧。

raksmart:日本东京云服务器之大陆优化线路测评

6、路由测试

电信回程,直连,走bgp+ntt线路,国内强制走联通AS4837

Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop)
============================================================
traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets
 1  10.0.18.1  0.37 ms  *  LAN Address
 2  38.26.224.126  1.72 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.132  25.87 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.70  0.82 ms  AS64050  Japan, Tokyo, bgp.net
 5  *
 6  219.158.16.249  35.99 ms  AS4837  China, Shanghai, ChinaUnicom
 7  219.158.113.122  39.51 ms  AS4837  China, Shanghai, ChinaUnicom
 8  219.158.113.113  30.99 ms  AS4837  China, Shanghai, ChinaUnicom
 9  219.158.7.58  65.94 ms  AS4837  China, Guangdong, Guangzhou, ChinaUnicom
10  *
11  202.97.17.145  57.82 ms  AS4134  China, Guangdong, Guangzhou, ChinaTelecom
12  *
13  *
14  113.108.209.1  53.27 ms  AS4134  China, Guangdong, Guangzhou, ChinaTelecom


Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop)
============================================================
traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets
 1  10.0.18.1  0.17 ms  *  LAN Address
 2  38.26.224.126  0.55 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.132  0.51 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.70  3.18 ms  AS64050  Japan, Tokyo, bgp.net
 5  *
 6  219.158.30.69  34.26 ms  AS4837  China, ChinaUnicom
 7  219.158.6.205  38.08 ms  AS4837  China, Shanghai, ChinaUnicom
 8  219.158.113.105  33.10 ms  AS4837  China, Shanghai, ChinaUnicom
 9  *
10  202.97.17.193  36.60 ms  AS4134  China, Shanghai, ChinaTelecom
11  202.97.62.205  34.25 ms  AS4134  China, Shanghai, ChinaTelecom
12  *
13  *
14  *
15  101.227.255.34  36.26 ms  AS4812  China, Shanghai, ChinaTelecom
16  180.153.28.5  30.19 ms  AS4812  China, Shanghai, ChinaTelecom


Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop)
============================================================
traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets
 1  10.0.18.1  0.29 ms  *  LAN Address
 2  38.26.224.126  0.44 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.132  23.46 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.70  3.11 ms  AS64050  Japan, Tokyo, bgp.net
 5  *
 6  219.158.112.253  41.76 ms  AS4837  China, Shanghai, ChinaUnicom
 7  219.158.113.122  40.23 ms  AS4837  China, Shanghai, ChinaUnicom
 8  219.158.113.105  34.03 ms  AS4837  China, Shanghai, ChinaUnicom
 9  219.158.6.169  60.24 ms  AS4837  China, Beijing, ChinaUnicom
10  *
11  219.158.44.134  69.05 ms  AS4837  China, Beijing, ChinaUnicom
12  *
13  36.110.245.178  67.44 ms  AS23724  China, Beijing, ChinaTelecom
14  36.110.246.237  70.22 ms  AS23724  China, Beijing, ChinaTelecom
15  180.149.128.9  54.09 ms  AS23724  China, Beijing, ChinaTelecom

电信去程,电信163直连日本。

raksmart:日本东京云服务器之大陆优化线路测评

联通回程,竟然走的是电信bgp+cn2线路,直连。

Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop)
============================================================
traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets
 1  10.0.18.1  0.34 ms  *  LAN Address
 2  38.26.224.126  2.99 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.140  19.58 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.17  1.33 ms  AS64050  Japan, Tokyo, bgp.net
 5  202.55.27.93  1.60 ms  AS4809  Japan, Tokyo, ChinaTelecom
 6  *
 7  59.43.182.242  60.94 ms  *  China, Guangdong, Guangzhou, ChinaTelecom
 8  59.43.244.142  56.61 ms  *  China, Guangdong, Guangzhou, ChinaTelecom
 9  202.97.91.189  73.60 ms  AS4134  China, Guangdong, Guangzhou, ChinaTelecom
10  202.97.94.141  58.56 ms  AS4134  China, Guangdong, Guangzhou, ChinaTelecom
11  202.97.81.2  64.67 ms  AS4134  China, Guangdong, Guangzhou, ChinaTelecom
12  *
13  219.158.96.193  78.89 ms  AS4837  China, Guangdong, Guangzhou, ChinaUnicom
14  157.18.0.158  70.81 ms  AS17816  China, Guangdong, Guangzhou, ChinaUnicom
15  120.80.79.194  63.69 ms  AS17622  China, Guangdong, Guangzhou, ChinaUnicom
16  *
17  *

Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop)
============================================================
traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets
 1  10.0.18.1  0.19 ms  *  LAN Address
 2  38.26.224.126  1.37 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.140  24.74 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.17  1.62 ms  AS64050  Japan, Tokyo, bgp.net
 5  202.55.27.93  1.59 ms  AS4809  Japan, Tokyo, ChinaTelecom
 6  59.43.186.185  57.80 ms  *  China, Shanghai, ChinaTelecom
 7  59.43.244.122  31.07 ms  *  China, Shanghai, ChinaTelecom
 8  *
 9  *
10  202.97.87.154  35.44 ms  AS4134  China, Shanghai, ChinaTelecom
11  *
12  *
13  *
14  58.247.221.178  37.65 ms  AS17621  China, Shanghai, ChinaUnicom
15  139.226.225.22  41.02 ms  AS17621  China, Shanghai, ChinaUnicom
16  58.247.8.153  53.91 ms  AS17621  China, Shanghai, ChinaUnicom
17  *
18  *

Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop)
============================================================
traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets
 1  10.0.18.1  0.22 ms  *  LAN Address
 2  38.26.224.126  0.75 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.140  10.77 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.17  2.19 ms  AS64050  Japan, Tokyo, bgp.net
 5  202.55.27.93  1.47 ms  AS4809  Japan, Tokyo, ChinaTelecom
 6  *
 7  59.43.182.233  75.63 ms  *  China, Beijing, ChinaTelecom
 8  59.43.246.162  178.14 ms  *  China, Beijing, ChinaTelecom
 9  202.97.12.173  158.30 ms  AS4134  China, Beijing, ChinaTelecom
10  *
11  *
12  *
13  219.158.99.13  65.39 ms  AS4837  China, Beijing, ChinaUnicom
14  123.126.0.234  79.04 ms  AS4808  China, Beijing, ChinaUnicom
15  123.126.0.214  65.48 ms  AS4808  China, Beijing, ChinaUnicom
16  61.148.158.106  77.37 ms  AS4808  China, Beijing, ChinaUnicom
17  61.135.113.154  61.99 ms  AS4808  China, Beijing, ChinaUnicom
18  *
19  123.125.99.1  79.62 ms  AS4808  China, Beijing, ChinaUnicom

联通去程,联通169直连,日本走软银线路。

raksmart:日本东京云服务器之大陆优化线路测评

移动回程,日本走bgp+ntt,国内走移动骨干。

Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop)
============================================================
traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets
 1  10.0.18.1  0.23 ms  *  LAN Address
 2  38.26.224.126  2.63 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.140  0.47 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.61  4.83 ms  AS64050  Japan, Tokyo, bgp.net
 5  61.120.146.129  4.97 ms  AS2914  Japan, Tokyo, ntt.com
 6  129.250.7.55  1.38 ms  AS2914  ntt.com
 7  129.250.2.51  48.08 ms  AS2914  China, Hong Kong, ntt.com
 8  129.250.6.92  47.43 ms  AS2914  China, Hong Kong, ntt.com
 9  203.131.241.82  50.96 ms  AS2914  China, Hong Kong, ntt.com
10  223.120.2.117  50.52 ms  AS58453  China, Hong Kong, ChinaMobile
11  *
12  221.183.55.86  51.80 ms  AS9808  China, Guangdong, Guangzhou, ChinaMobile
13  221.183.52.85  53.87 ms  AS9808  China, Guangdong, Guangzhou, ChinaMobile
14  221.176.24.101  57.11 ms  AS9808  China, Guangdong, Guangzhou, ChinaMobile
15  111.24.5.173  64.71 ms  AS9808  China, Guangdong, Guangzhou, ChinaMobile
16  221.176.24.5  63.48 ms  AS9808  China, Guangdong, Guangzhou, ChinaMobile
17  211.136.249.121  62.14 ms  AS56040  China, Guangdong, Guangzhou, ChinaMobile
18  211.136.204.97  61.84 ms  AS56040  China, Guangdong, Guangzhou, ChinaMobile
19  211.136.196.238  66.18 ms  AS56040  China, Guangdong, Guangzhou, ChinaMobile
20  211.136.203.14  69.39 ms  AS56040  China, Guangdong, Guangzhou, ChinaMobile
21  *
22  *
23  120.196.212.25  57.95 ms  AS56040  China, Guangdong, Guangzhou, ChinaMobile


Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop)
============================================================
traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets
 1  10.0.18.1  0.28 ms  *  LAN Address
 2  38.26.224.126  0.39 ms  AS398993  Japan, Tokyo, cogentco.com
 3  182.54.128.140  37.87 ms  AS64050  Japan, Tokyo, bgp.net
 4  182.54.128.61  4.88 ms  AS64050  Japan, Tokyo, bgp.net
 5  61.120.146.129  0.73 ms  AS2914  Japan, Tokyo, ntt.com
 6  129.250.7.55  1.36 ms  AS2914  ntt.com
 7  129.250.7.79  9.42 ms  AS2914  Japan, Osaka, ntt.com
 8  129.250.6.92  47.73 ms  AS2914  China, Hong Kong, ntt.com
 9  129.250.5.28  54.96 ms  AS2914  China, Hong Kong, ntt.com
10  223.120.2.65  51.50 ms  http: 403  http: 403
11  *
12  *
13  *
14  221.183.55.22  89.54 ms  http: 403  http: 403


Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop)
============================================================
traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets
 1  10.0.18.1  0.39 ms  http: 403  http: 403
 2  38.26.224.126  0.52 ms  http: 403  http: 403
 3  182.54.128.140  0.66 ms  http: 403  http: 403
 4  182.54.128.61  0.79 ms  http: 403  http: 403
 5  61.120.146.129  1.67 ms  http: 403  http: 403
 6  129.250.7.55  1.58 ms  http: 403  http: 403
 7  129.250.7.79  8.67 ms  http: 403  http: 403
 8  129.250.5.33  43.88 ms  http: 403  http: 403
 9  129.250.5.28  57.82 ms  http: 403  http: 403
10  129.250.5.33  64.37 ms  http: 403  http: 403
11  *
12  *
13  *
14  *
15  *
16  *
17  111.24.2.134  91.53 ms  http: 403  http: 403
18  *
19  211.136.63.66  89.95 ms  http: 403  http: 403
20  211.136.95.226  110.61 ms  http: 403  http: 403
21  *
22  *
23  *
24  211.136.25.153  93.51 ms  http: 403  http: 403

移动去程,走香港cmi跳软银到日本。

raksmart:日本东京云服务器之大陆优化线路测评

7、路由掉包

晚高峰测试,效果还可以。

raksmart:日本东京云服务器之大陆优化线路测评

8、ping

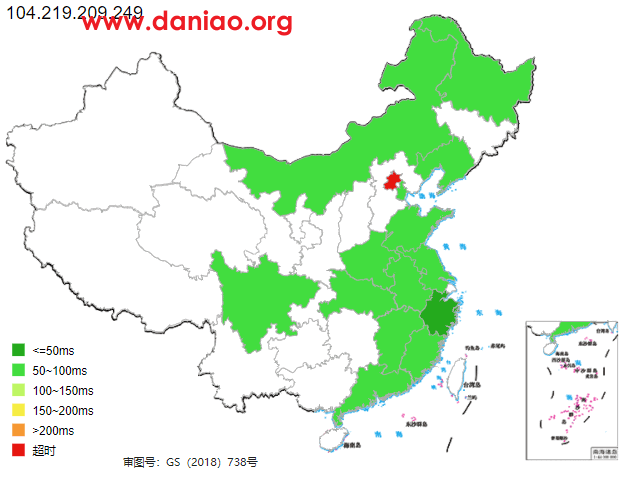

数据提供:ping.chinaz.com,ping值看起来还是不错的。

raksmart:日本东京云服务器之大陆优化线路测评

raksmart:日本东京云服务器之大陆优化线路测评

9、Geekbench 5 Benchmark Test

单核,550分,性能中等。

详细:https://browser.geekbench.com/v5/cpu/11656154

raksmart:日本东京云服务器之大陆优化线路测评

10、最后

线路总结:

电信,双程直连,回程走bgp+ntt线路,国内走联通AS4837,去程走163!

联通:双程直连,回程走bgp+cn2线路,联通169直连,日本走软银线路。

移动:双程直连,日本走bgp+ntt,国内走移动骨干,去程走cmi+日本软银。
